GENERAL  PARTICULARS

·         Length Overall with swim step                 83'‑6"       25.48 m

·         Designed Waterline                                  67'‑3"       20.50 m

·         Beam, navigational                                   21'‑6"         6.58 m

·         Draft, half load                                             6’‑5"         1.98 m

·         Bridge clearance                                       47’-5"         14.48 m

·         Minimum headroom                                    6’-9"         2.06 m

·         Construction:                                            FRP hand layup

·         Propulsion:                                                Twin Screw

·         Engines:                                                    Twin Lugger 6125

·         Horsepower:                                             350 s.h.p. @ 1800 rpm (Cont. Duty)

·         Transmission                                            Twin Disc with 3:97 reduction gear

·         Generators 1 & 2: (diesel):                       Northern Lights

·         Rated                                                        40 kw ea

·         Fuel Tankage (diesel)                               6,400 gal   22,712 L

·         Water Tankage                                         1,000 gal     3,785 L

·         Gray Water Tankage                                   600 gal        2,271 L

·         Holding Tankage                                         900 gal        3,407 L

·         Lube Oil                                                       35 gal           132 L

·         Waste Lube Oil                                           35 gal           132 L

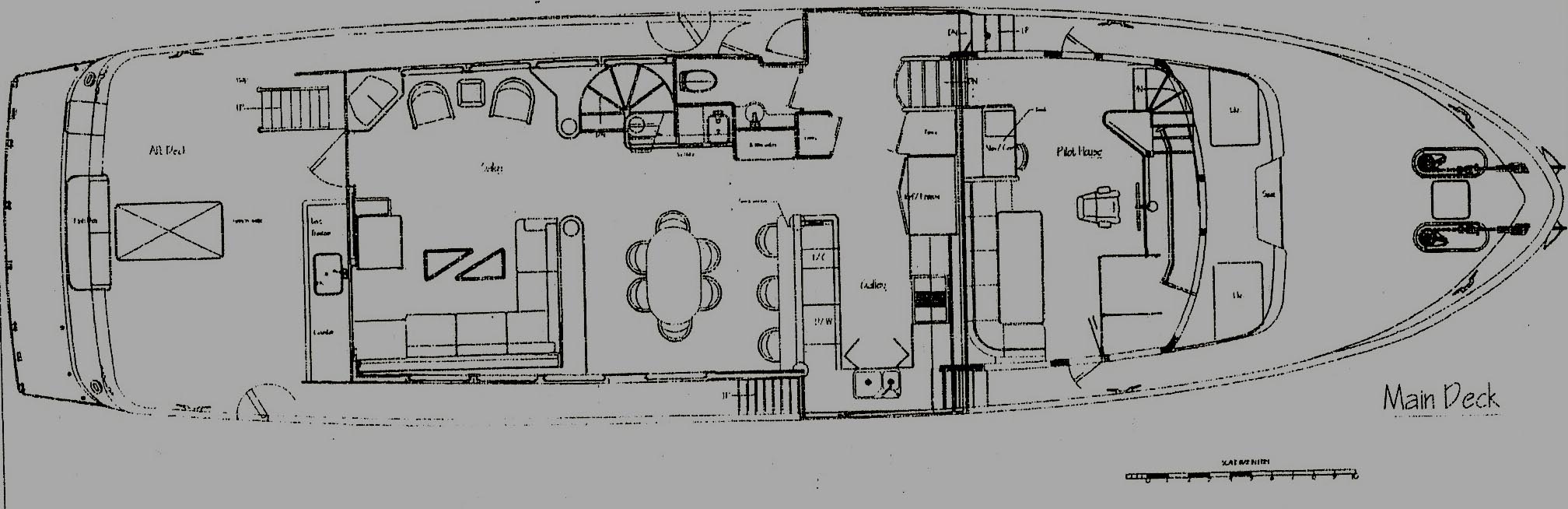

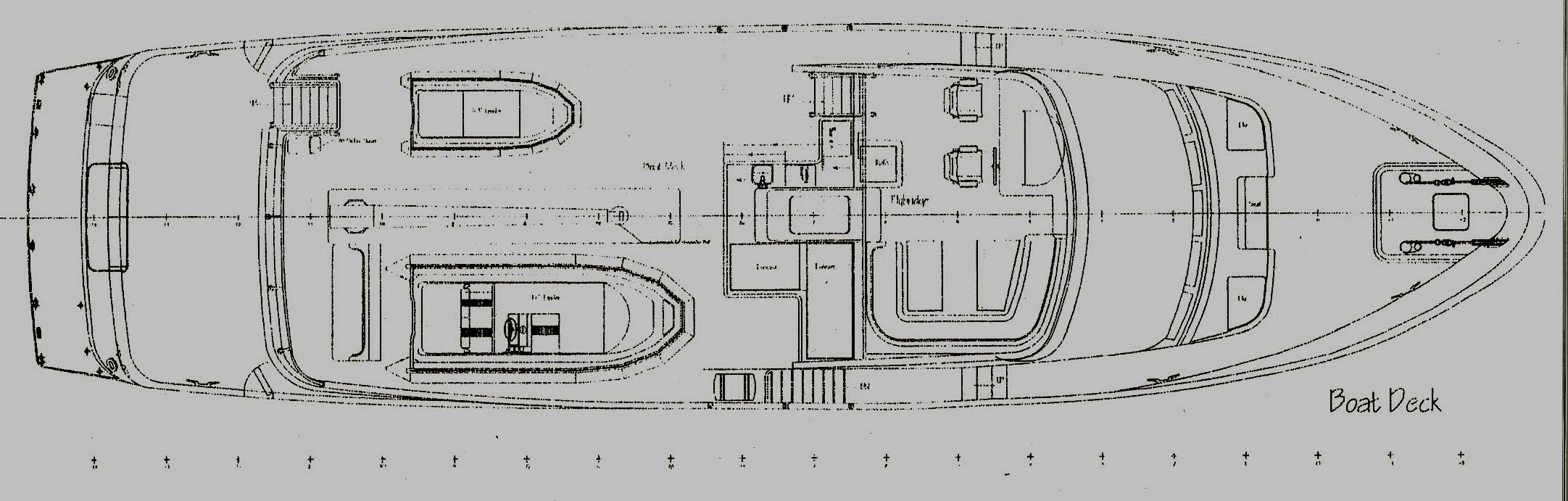

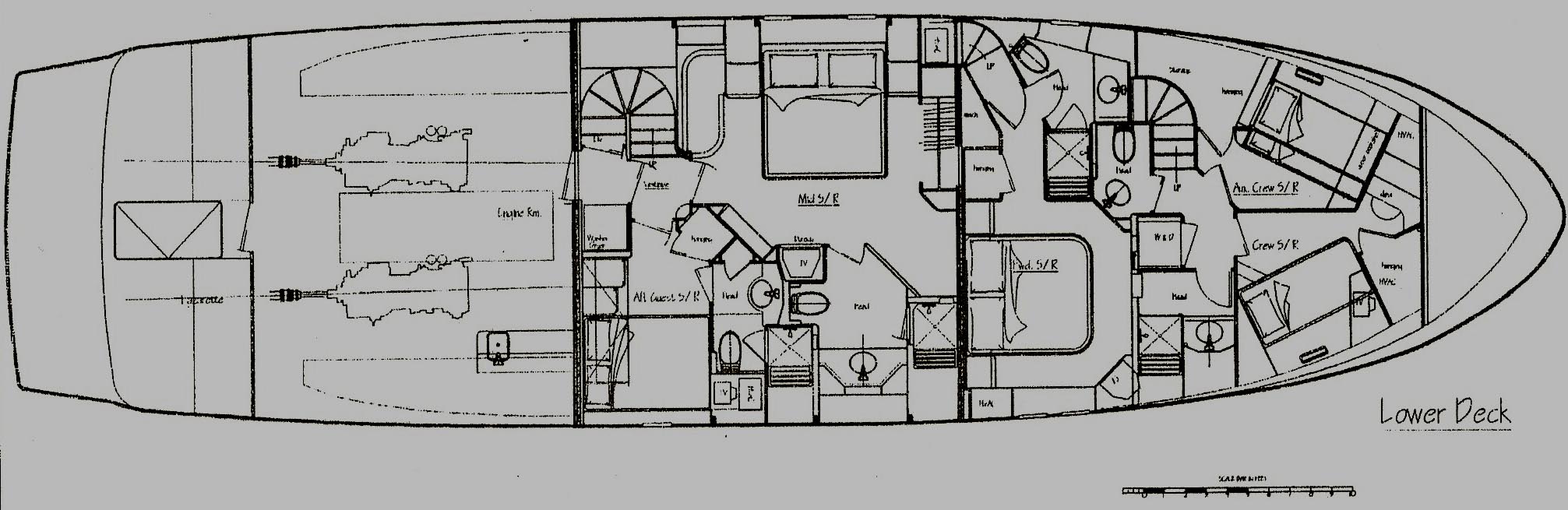

                                                                INTERIOR LAYOUT
